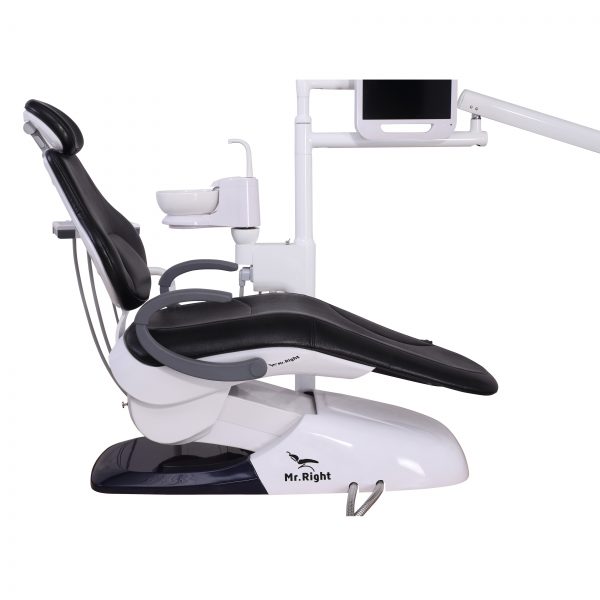

Mr.Right R9 DENTAL CHAIR WITH OPERATING UNIT, BUILT FOR DENTAL IMPLANTATION.
$ 5,900.00
- Description
- Reviews (0)
- OPTIONS
- STANDARD CONFIGURATION
- Service Life And Warranty
Description
Equipment
Flexibility
Cart version.
-
- R9
-
- R9
Dentist Element
Easy touch control panel
No unnecessary control buttons or complicated menus. The control panel shows only those functions that you need at any given time. The symbols are self-explanatory and dedicated keys are assigned to the functions that you use most frequently. In other words, you can navigate at a single glance without having to interrupt your accustomed treatment routines.
Preset Chair Position Key
-
Chair Pose For Patient Spitting
Press this key, move the patient chair to the position where patient can spit out easily , LED operating light is shut down, flushing function is opened. When touch again, the patient chair will back to previours working position, LED operating light is opened, flushing function is closed.
-
Entry/Exit Position Key
Touch this key,the patient chair moves up to the lowest position, the backrest moves to an upright position, easy for patient entry or exit the dental chair.
-
Rescue Position
Press this key, the patient chair immediately moves up to highest position, and the backrest rotates backward to more then -5°.
-
Rinse Position
Touch this key, the patient chair immediately moves to a position suitable for cleaning. The patient chair moves up to the hightest position, the backrest moves to an upright position, the operating light is shut down, the flushing function is opened.
Other Wonderful Design
-
- Height Adjustable
For the Chair-Side and Cart version, you can adjust the dentist element ‘s height from 30″ to 38″, and the element’s tray can bear the weight up to 55lbs.
-
- Rotable instrument holder bar
Easy to adjust the position to facilitate the doctor to take the instrument.
-
- X-Ray Film Viewer
Get a clear view of your X-Ray Film.
-
- Liquid Crystal Display
Time Reminder When you do a time-sensitive treatment, you can set a time to remind you, such as anesthesia,whitening,or curing treatment. Display the treatment center’s working air pressure or water temperature.
-
- Three Stainless Steel Instrument Trays
3 stainless steel instrument trays, put all the necessary instruments beside your hand.
-
- Three Stainless Steel Instrument Trays
3 stainless steel instrument trays, put all the necessary instruments beside your hand.
-
- Three Stainless Steel Instrument Trays
3 stainless steel instrument trays, put all the necessary instruments beside your hand.
-
- Two Monitor Brackets
Two monitor brackets,one for the endoscope system,another for the implant surgery ECG patient monitor
Assistant element
-
● Comfort assistant element with user interface
● Assistant tray
● Assistant operation panel
● 3 ways syringe
● Detachable weak suction connector
● Detachable strong suction connector
-
Space-saving element for maximum freedom of movement. Ideal for treatment situations with an assistant.
-
To ensure a streamlined workflow the assistant element is equipped with its own touch control panel and with a storage drawer.
LED Operating Light
Three-axis, provides unlimited positioning.
Flexible light intensity settings.
Auto On/Off function: Turns the dental light on/off automatically when the chair reaches a special position.
You can aslo control the dental light on/off using the control panel or foot control.
-
Superb shadowless effect(at 700mm distance ,the test of the shadow is 0).
-
High illumination from 7000lux-120000lux.
-
7 color temperatures to be chosen (4000K to 5500K).
Suction System for Saliva Ejector
Central Suction System Design (include Place Selection Valve) :
The system with a place selection valve is like a negative pressure switch. When the switch is turned on, the negative pressure will enter the machine. When the switch is closed, the negative pressure will not enter,so this design will reduce the workload of the central suction system.Thus, the work efficiency is improved.
Optional
-
Clear Intraoral Images
integration of an intra-oral camera adds a new dimension to patient communication.
-

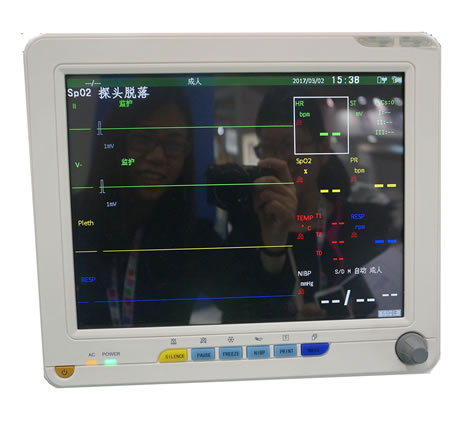

Electrocardiogram(ECG) Monitor
R9 dental chair comes with two working chairs, one dentist chair and one assistant chair.
-
Dentist Stool
PU Or Microfiber Leather for Choose
1)Seat 360 Rotation
2)Seat Height Adjustment:About 510mm To 630mm
3)Backrest Height Adjustment
4)Backrest Backward Adjustment
-
Standard Assistant’s Stool
1)Seat 360 Rotation
2)Seat Height Adjustment:About 460mm To 580mm
3)Backrest fixed
Ergonomics
Imitation leather Upholstery
The comfortable imitation leather upholstery provides exceptional patient comfort. The soft and dynamic design surface increases comfort, shows style and allows for a relaxed treatment atmosphere merely through its appearance and texture.
Thin backrest for ideal freedom of leg movement, flexible positioning of the foot control.

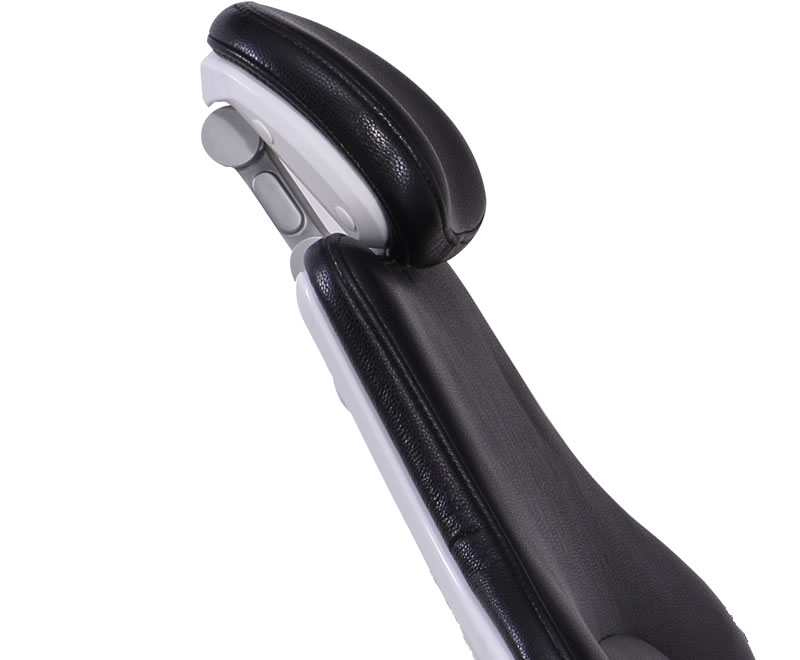

Quick Release Articulating Headrest
Your can sdjust the articulating headrest easily with one hand by depressing the Quick Release Button and situating the headrest in the desired position. Release the button to lock headrest into place.
Comfortable Patient Positioning
Quick adjustment: Only 9 seconds for backrest to move from the lowest position to the highest position.
Synchronized movement of seat and backrest, which keeps the patient from having to readjust when the chair is lowered or raised.
Other Wonderful Design
-
Warm water supply
Warm water is avaible for all intrument hose as well as the tumbler filling.
-
Swiveled Armrest
Right armrest can be swiveled aside.
-
Lower Minimum Height
16″ lower minimum height make it easier for children and disableds to enter or exit the patient chair and enables positioning flexibility for practitioners of any stature.
-
9 Chair Positions Memory
You can preset up to 9 desired chair positions in the dental chair, when you need any position, just press one key, the chair will move to it automatically.
-
Multi-Function Foot Control Switch
1.LED Operating Light Switch: Control the LED operating light power on or off.
2.Water Supply Pedal: Step on this pedal to supply water to handpiece .
3.Control The Patient Chair Movement: Control the patient chair to move at four direction, backor, front, up or down.
4.Switch For Cup Water: Step this button, the cup supply water.
5.Switch Of Blower: Keep stepping this button, the handpiece blows which is holded.
6.Air Supply Pedal: Step on this pedal to supply air to handpiece.
-
Ceramic Swivel Cuspidor
Can 180° rotatable
-
Doctor-patient Communication
1.There’s nothing more embarrassing than when you feel discomfortable but you can’t say a word about it.
2.Pree this key if you feel uncomfortable during the dental treatment.
3.Then the chair will make a sound to remind your doctor.(This function applies to R5,R7,R9)
-
DC 5V USB Connection
You can use this USB connection to charge your mobile phone or any other electronic device.
Hygiene
-
Bottle Water System
You can switch to use the bottle water any time.
Detachable Hygiene-critical Compoments
The hygiene-critical components can be detached for the purpose of cleaning/thermal disinfection and sterilization. The smooth surfaces are easy to clean on a daily basis.
-
Smooth Surfaces
The smooth surfaces are easy to clean on a daily basis.
-
Detachable suction connector
-

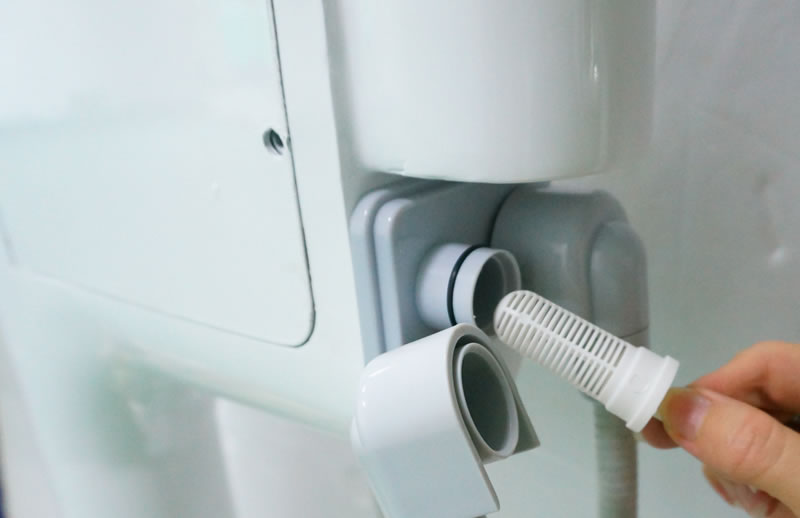

Detachable suction filter
-
Removable plastic tray cover, for easy daily cleaning.
-
Removable plastic tray cover, for easy daily cleaning.
Safety
-
Interlock System
When one of the instruments is working, the position of the patient chair will be locked.
-
Safety Key
One key, stop everything: air, water and electricity supply, useful for any emergency and every day when you are off work, just push one key, everything closes.
-
Safety Lock Device
Patient chair stops downward movement when obstruction is detected.
Quality
Top Brand Component
All the main components using inside Mr.Right dental chair are from world’s famous brand name, which insure Mr.Right dental chair super high quality, reliable for years.
-
Taiwan low noise motor, gurantee for 5 years.
-
American Dupont membrane valve
-
Germany Bayer silicone handpiece tubing.
-
Hydrolysis resistance and ageing resistance PU pipes.
Strong and Stable Chair Frame
All frame compoinents get through special rust proofed treatment for long time usage，all the moving parts are connected by oil seal bearings for silence and stale chair movement. Weight capacity up to 300kg.
Chair Upholstery Colour
Microfiber Leather Colour Sheet
Upgrade Microfiber Leather Colour Sheet
Be the first to review “Mr.Right R9 DENTAL CHAIR WITH OPERATING UNIT, BUILT FOR DENTAL IMPLANTATION.”
High&Low Speed handpiece Kit (TR300)
Dental Handpiece Set Medical Handpeice Kit-Two PCS High Speed Handpiece and One PC Low Speed Handpiece
Build-in LED Curling light (LED.Q)
Woodpecker Built-in Dental Curing Light LED.Q
Build-in Sclaer(UDS-N2 LED)
UDS-N2(LED) LED Woodpecker Ultrasonic Piezoelectric Cavitron Built-in Scaler with Detachable handpiece
Build-in Sclaer (UDS-N2)
UDS-N2 Woodpecker Ultrasonic Piezoelectric Cavitron Built-in Scaler with Detachable handpiece
Suction Machine (TR-YP606A1)
Dental Suction Machine Vacuum System Support 1 Or 2 Or 3 PCS Dental Chair
Air compressor (TR-1EW-32)
Noiseless Oil Free Dental Air Compressor Support 1 PCS Dental Chair 32L，545W
Build-in Micromotor(MD-6)
MODERN® Brushless Electric LED Motor Drive Control, ISO E Type Connection, Inner Water Spray,Speed Range From 100-200,000RPM
Endoscope System (MD-1500A)
Build In Webcam 15 Inch Wired MD1500A Dental Intraoral Camera System LCD Monitor With holder,8GB U disk
Implant Surgery ECG Patient Monitor 10.1 inch(TR-ECG01)
Implant Surgery ECG Patient Monitor 6-parameter Portable ECG NIBP,With 12.1 Inch Or 10.1 Inch
STANDARD CONFIGURATION
● Creative fiber leather cushion conforms to ergonomics
● Synchronized chair design● Full tabing hot water function● Onlt needs 9s for backrest from highest point to lowest point, 9 memory program spit restoration● Emergency stop● Human interactive with machine function● 3 way sgrige
● Handpiece tubing disinfection● 3 doctors, 9 memory position● Doctor operation panel● 135° Rotatable inclined type big rack● 4 holes handpiece tubing● pressure Meter● Built-in DC 24V X-Ray film viewer● 3 stainless steel instrumet tray● Exclusively designed for the dental implant surgery
● Big projection angle● High illumination up to 120000lux● 7 color temperatures to be chosen (4000k to 5500k)● Superb shadow less effectSPECIFICATIONS
Power Voltage: AC220V-230V,50HZ110VWater Pressure: 0.20-0.40Mpa/2.0-4.0barAir Pressure: 0.55-0.80Mpa/5.5-8.0barOutput: ≥55L/min(water vacuum),≥120L/min(air vacuum| Product Category | Service Life (years) |
| All Mr.right Dental Chairs, Operator and Assistant Stools, Dental Lights, Delivery Systems, Support Systems, Monitor Mounts, Dental Furniture, and related components except components listed separately below | 8 |
| Heated Syringes | 3 |
| Control Modules | 2 |
Warranty
Scope
Mr.right warrants all goods listed below against defects in material or workmanship under normal intended use when purchased from Mr.right or an authorized Mr.right dealer. Mr.right’s sole obligation under the warranty is to provide parts for the repair, or replacement of any defective component with one that is equivalent to the original in performance. This warranty is in lieu of all other warranties or obligations express or implied. Mr.right expressly disclaims all implied warranties of merchant ability or fitness for a particular purpose. In no event will Mr.right be liable for indirect, special, incidental, exemplary, or consequential damages of any kind.The repair or replacement of components is contingent upon Mr.right’s styles and color options available at the time of the warranty claim. If a warranty claim is filed after a product or color has been discontinued, Mr.right reserves the right to honor the warranty in one of the following ways:- Replace the affected component with a new component in the same style and/or color.
- Replace the affected component, and other product components in the operatorwith a product style and/or color similar to the originally purchased style and/or color.
Period
The warranty period, measured from the date of delivery, shall be as follows:| Goods | Warranty |
| Electric Dental Chair Motor(tilt and lift) | 5 years |
| Dental Chair Frame | 5 years |
| Operator and Assistant Stools, Dental Lights, Delivery Systems, Monitor Mounts, Dental Furniture, and related components | 2 years |
Exclusions
The warranty does not cover:- Damage resulting from improper installation or maintenance, accident, misuse, abuse, neglect, alterations, freight damage, or natural disaster.
- Damage resulting from the use of chemicals and process forcleaning, disinfecting, or sterilization.
- Normal service items such as (but not limited to): light shields, light bulbs, filters, O-rings, handpiece tubing, and water cartridges. Also, normal wear and tear is not covered.
- Consumable products held beyond the expiration date shown on thepackaging.
- All other products, not manufactured by Mr.right, including OEM, follow the original manufacturer’s warranty, and are not covered by Mr.right’s warranty. Examples include, but not limited to: sterilizers, maintenance equipment, cameras, curing lights, ultrasonic, control modules, electric motors, attachments, handpieces, and turbines. Please contact Mr.right Customer Service for specific warranty information.
