Mr.Right R2 Music Dental Unit,Human Friendly Economical Dental Chair Unit,With Detachable Metal Backrest
$ 2,670.00
- Description
- OPTIONS
- STANDARD CONFIGURATION
- Reviews (0)
- Service Life And Warranty
Description
Equipment
Flexibility
One unit, 4 different versions.
The dentist’s element is available with Over-the-Patient version，up mounted Instrument tray version, Cart version and Chair-Side version.
-
R2
Over-the-Patient
-
R2-Cart
Cart Version
-
R2-Up
With Up Touch Control Panel
-
Touch Control Panel
Optimized Access
-
- Music Player
Music can make you relaxed,soothe your fears. You can play music through USB flash drive, SD card and bluetooth.
-
- 90° Rotatable Side Box
Dental unit side box is movable for four-hands operation, convenient for maintenance.
-
- Detachable Metal Backrest
Convenient for maintenance.
Dentist Element
-
Easy Touch Control Operation Panel
No unnecessary control buttons or complicated menus. The control panel shows only those functions that you need at any given time. The symbols are self-explanatory and dedicated keys are assigned to the functions that you use most frequently. In other words, you can navigate at a single glance without having to interrupt your accustomed treatment routines.
-
Instrument Holder Bar
6 positions for the instrument holder bar,it’s good for dentists to choose different tools.
-
Dentist Element
Perfect coordination and variable positioning of dentist element. You can position the dentist element to any desired working position.
R2-Control Operation Panel
1.Chair Pose For Patient Spitting:Press this key, move the patient chair to the position where patient can spit out easily , LED operating light is shut down, flushing function is opened. When touch again, the patient chair will back to previours working position, LED operating light is opened, flushing function is closed.
2.Entry/Exit Position Key:Touch this key,the patient chair moves up to the lowest position, the backrest moves to an upright position, easy for patient entry or exit the dental chair.
3.Chair up.
4.Backrest up.
5.X-Ray film viewer.
6.Chair down.
7.Backrest down.
8.Rinse Position:Touch this key, the patient chair immediately moves to a position suitable for cleaning. The patient chair moves up to the hightest position, the backrest moves to an upright position, the operating light is shut down, the flushing function is opened.
9.Rescue Position:Press this key, the patient chair immediately moves up to highest position, and the backrest rotates backward to more then -5°.
R2-Control Operation Panel
10.Air pressure meter:Shows the air pressure when the handpiece is working.
11. Dentist element down just for the R2-Cart.
12.Dentist element up just for the R2-Cart.
13. Operating light.
14.Operating X-ray viewer.
15. Set button.
16. Flushing (the cuspidor).
17.Three memory program: Preset chair positions 1, 2, 3.
18.Tumbler filling.
19.Heating.
-
- Dentist Element Locking Button
Press this button and move the dentist element to your desired position, release the button and the position will be locked.
-
- Foot Control
The chair functions can be activated handsfree: With the foot control that can be operated even more intuitively. You can aslo control the operating light using the foot control.
-
- Patient Tray
Additional patient tray, patient can put their personal things here during treatment.
Assistant Element
-
● Comfort assistant element with user interface
● Assistant tray
● Assistant operation panel
● 3 ways syringe
● Detachable weak suction connector
● Detachable strong suction connector
-
Space-saving element for maximum freedom of movement. Ideal for treatment situations with an assistant.
LED Operating Light
Three-axis, provides unlimited positioning.
Flexible light intensity settings.
You can aslo control the dental light on/off using the control panel or foot control.
Foot Control Switch
In 2019, we have Upgraded the foot switch to make it more flexible and convenient to operate. The new foot switch is as follows:
1.LED Operating Light Switch:
Control the LED operating light power on or off.
2.Water Supply Pedal:
Step on this pedal to supply water to handpiece .
3.Control The Patient Chair Movement:
Control the patient chair to move at four direction, backor, front, up or down.
4.Switch For Cup Water:
Step this button, the cup supply water.
5.Switch Of Blower:
Keep stepping this button, the handpiece blows which is holded.
6.Air Supply Pedal:
Step on this pedal to supply air to handpiece.
Suction System for Saliva Ejector
There are three kinds of suction system for saliva ejector in dental chair.
-
Normal Suction System Design
A dental chair has suction system for saliva ejector which divides into air Pressure(strong suction) attached a silencing system, water Pressure(weak suction). When the machine exports the air, the air in the tube becomes thin and negative pressure is formed. So the outside air will enter the tube by the pressure difference.The principle of weak suction is same to work.
-
Central Suction System Design（Without Place Selection Valve)
The system without place selection valve,negative pressure will enter the machine directly. When central suction system is touched by the working dental chairs , the pressure will exist in other dental chairs without working,so this design will increases the workload of the central suction system.
-
Central Suction System Design (include Place Selection Valve)
The system with a place selection valve is like a negative pressure switch. When the switch is turned on, the negative pressure will enter the machine. When the switch is closed, the negative pressure will not enter,so this design will reduce the workload of the central suction system.Thus, the work efficiency is improved.
Clear Intraoral Images(Optional)
Optional: integration of an intra-oral camera adds a new dimension to patient communication.
Dentist Chair
-
Dentist Stool
PU Or Microfiber Leather for Choose
1)Seat 360 Rotation
2)Seat Height Adjustment:About 510mm To 630mm
3)Backrest Height Adjustment
4)Backrest Backward Adjustment
-
Standard Assistant’s Stool (Option)
PU Or Microfiber Leather for Choose
1)Seat 360 Rotation
2)Seat Height Adjustment:About 460mm To 580mm
3)Backrest fixed
-
Luxury Assistant’s Stool (Option)
PU Or Microfiber Leather for Choose
1)Seat 360 Rotation
2)Seat Height Adjustment:About 520mm To 660mm
3)Armrest 360 Rotation
4)Armrest Height Adjustment
Ergonomics
Seamless Upholstery
Seamless PU upholstery, easy for every day’s clean.
Easy Adjustable Headrest
Comfortable Patient Positioning
Quick adjustment: Only 9 seconds for backrest to move from the lowest position to the highest position
Other Wonderful Design
-
Air Vacuum Muffling System
If you choose your dental treatment center to connect with a oil free air compressor, then a silencer will be installed in the suction part, supply you with a more quiet working environment.
-
- Ceramic Swivel Cuspidor
Detachable Hygiene-critical Compoments
-
- Detachable suction connector
Because of the flexibility of the silicone material, it can be connected more tightly during working, effectively prevent air leakage and improve the suction effect. At the same time, the silicone connection head is easy to clean. It can be sterilized at high temperatures to prevent cross-infection.
-
- Detachable suction filter
Larger filter space, easier to operate, not easy to break, better sealing.
Safety
Backrest Safety Stop Cover:Backrest stops downward movement when obstruction is detected.
Safety Key:One key, stop everything: air, water and electricity supply, useful for any emergency and every day when you are off work, just push one key, everything closes.
Quality
Top Brand Component
All the main components using inside Mr.Right dental chair are from world’s famous brand name, which insure Mr.Right dental chair super high quality, reliable for years.
-
Taiwan low noise motor, gurantee for 5 years.
-
American Dupont membrane valve
-
Germany Bayer silicone handpiece tubing.
-
Hydrolysis resistance and ageing resistance PU pipes.
Strong and Stable Chair Frame

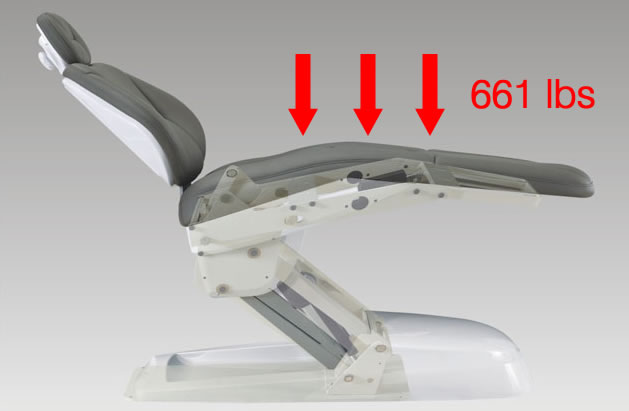

All frame compoinents get through special rust proofed treatment for long time usage，all the moving parts are connected by oil seal bearings for silence and stale chair movement. Weight capacity up to 300kg.
Chair Upholstery Colour Sheet
Microfiber Leather Colour Sheet
Upgrade Microfiber Leather Colour Sheet
Installation Diagram
High&Low Speed handpiece Kit (TR300)
Dental Handpiece Set Medical Handpeice Kit-Two PCS High Speed Handpiece and One PC Low Speed Handpiece
Fiber Optic High Speed Handpiece With Quick Coupling (SUN-LC4-KP9000)
Fiber Optic High Speed Handpiece With Quick Coupling, Compatible With KAVO 4/6 Hole Fiber Optic Quick Coupling
Build-in LED Curling light (LED.Q)
Woodpecker Built-in Dental Curing Light LED.Q
Build-in Sclaer(UDS-N2 LED)
UDS-N2(LED) LED Woodpecker Ultrasonic Piezoelectric Cavitron Built-in Scaler with Detachable handpiece
Build-in Sclaer (UDS-N2)
UDS-N2 Woodpecker Ultrasonic Piezoelectric Cavitron Built-in Scaler with Detachable handpiece
Suction Machine (TR-YP606A1)
Dental Suction Machine Vacuum System Support 1 Or 2 Or 3 PCS Dental Chair
Air compressor (TR-1EW-32)
Noiseless Oil Free Dental Air Compressor Support 1 PCS Dental Chair 32L，545W
Build-in Micromotor(MD-6)
MODERN® Brushless Electric LED Motor Drive Control, ISO E Type Connection, Inner Water Spray,Speed Range From 100-200,000RPM
Endoscope System (MD-1500A Wired Unit)
Build In Webcam 15 Inch Wired MD1500A Dental Intraoral Camera System LCD Monitor With holder,8GB U disk
Be the first to review “Mr.Right R2 Music Dental Unit,Human Friendly Economical Dental Chair Unit,With Detachable Metal Backrest”
| Product Category | Service Life (years) |
| All Mr.right Dental Chairs, Operator and Assistant Stools, Dental Lights, Delivery Systems, Support Systems, Monitor Mounts, Dental Furniture, and related components except components listed separately below | 8 |
| Heated Syringes | 3 |
| Control Modules | 2 |
Warranty
Scope
Mr.right warrants all goods listed below against defects in material or workmanship under normal intended use when purchased from Mr.right or an authorized Mr.right dealer. Mr.right’s sole obligation under the warranty is to provide parts for the repair, or replacement of any defective component with one that is equivalent to the original in performance. This warranty is in lieu of all other warranties or obligations express or implied. Mr.right expressly disclaims all implied warranties of merchant ability or fitness for a particular purpose. In no event will Mr.right be liable for indirect, special, incidental, exemplary, or consequential damages of any kind.The repair or replacement of components is contingent upon Mr.right’s styles and color options available at the time of the warranty claim. If a warranty claim is filed after a product or color has been discontinued, Mr.right reserves the right to honor the warranty in one of the following ways:- Replace the affected component with a new component in the same style and/or color.
- Replace the affected component, and other product components in the operatorwith a product style and/or color similar to the originally purchased style and/or color.
Period
The warranty period, measured from the date of delivery, shall be as follows:| Goods | Warranty |
| Electric Dental Chair Motor(tilt and lift) | 5 years |
| Dental Chair Frame | 5 years |
| Operator and Assistant Stools, Dental Lights, Delivery Systems, Monitor Mounts, Dental Furniture, and related components | 2 years |
Exclusions
The warranty does not cover:- Damage resulting from improper installation or maintenance, accident, misuse, abuse, neglect, alterations, freight damage, or natural disaster.
- Damage resulting from the use of chemicals and process forcleaning, disinfecting, or sterilization.
- Normal service items such as (but not limited to): light shields, light bulbs, filters, O-rings, handpiece tubing, and water cartridges. Also, normal wear and tear is not covered.
- Consumable products held beyond the expiration date shown on thepackaging.
- All other products, not manufactured by Mr.right, including OEM, follow the original manufacturer’s warranty, and are not covered by Mr.right’s warranty. Examples include, but not limited to: sterilizers, maintenance equipment, cameras, curing lights, ultrasonic, control modules, electric motors, attachments, handpieces, and turbines. Please contact Mr.right Customer Service for specific warranty information.
