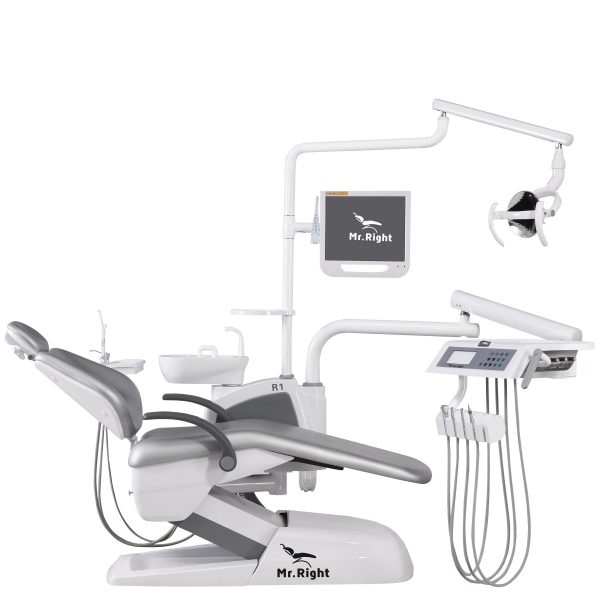

Mr.Right R1 DENTAL CHAIR WITH OPERATING UNIT, ALL YOUR NEED IN ONE PACKAGE, BUILT FOR START.
$ 2,570.00
- Description
- Reviews (0)
- OPTIONS
- STANDARD CONFIGURATION
- Service Life And Warranty
Description
Equipment
Flexibility
One unit, 4 different versions.
The dentist’s element is available with over-the-patient version，up mounted Instrument tray version, cart version and chair-side version.
-
R1
Over-the-Patient
-
R1-Cart
Cart Version
-
R1+
Chair-Side Version
-
R1-Up
With Up Touch Control Panel
-
Touch Control Panel
Optimized Access
-
135 Rotable instrument holder bar, Space-saving element for maximum freedom of movement.
-
Perfect coordination and variable positioning of dentist element. You can position the dentist element to any desired working position.
Dentist Element
Self-explanatory control panel
No unnecessary control buttons or complicated menus. The control panel shows only those functions that you need at any given time. The symbols are self-explanatory and dedicated keys are assigned to the functions that you use most frequently. In other words, you can navigate at a single glance without having to interrupt your accustomed treatment routines.
Preset Chair Position Key
-

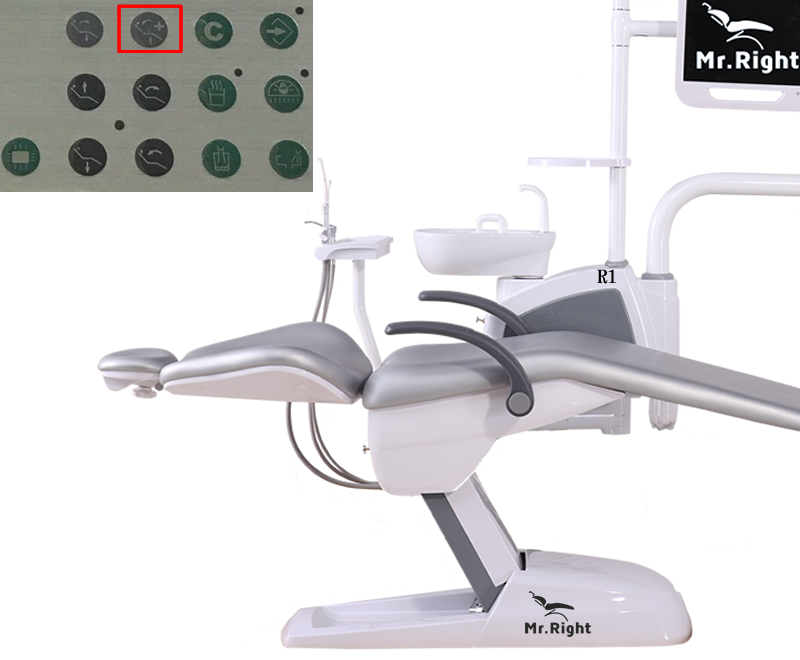

Rescue Position
Press this key, the patient chair immediately moves up to highest position, and the backrest rotates backward to more then -5°.
-
Rinse Position
Touch this key, the patient chair immediately moves to a position suitable for cleaning. The patient chair moves up to the hightest position, the backrest moves to an upright position, the operating light is shut down, the flushing function is opened.
Other Wonderful Design
-
Dentist Element Locking Button
Press this button and move the dentist element to your desired position, release the button and the position will be locked.
-
Foot Control
The chair functions can be activated handsfree: With the foot control that can be operated even more intuitively. You can aslo control the operating light using the foot control.
-
Patient Tray
Additional patient tray, patient can put their personal things here during treatment.
-
Height Adjustable
For the Chair-Side and Cart version, you can adjust the dentist element ‘s height from 30″ to 38″, and the element’s tray can bear the weight up to 55 lbs. For Over-the-Patient and With Up Mounted Instrument Tray version, the element’s tray can bear the weight up to 11 lbs.
Assistant Element
-
● Comfort assistant element with user interface
● Assistant tray
● Assistant operation panel
● 3 ways syringe
● Detachable weak suction connector
● Detachable strong suction connector
-
Space-saving element for maximum freedom of movement. Ideal for treatment situations with an assistant.
LED Operating Light
Three-axis, provides unlimited positioning.
Flexible light intensity settings.
You can aslo control the dental light on/off using the control panel or foot control.
-
Three-axis provides unlimited positioning.
-
Optimum visibility, perfect illumination of the treatment area.
-
The light can be operated by the sensor switch. Skim over the sensor switch within 10cm, the light will be on or off. When the light is on, keep the hand in front of the sensor within 10cm, the illumination of the light will be adjusted.
Suction System for Saliva Ejector
There are three kinds of suction system for saliva ejector in dental chair.
-
Normal Suction System Design
A dental chair has suction system for saliva ejector which divides into air Pressure(strong suction) attached a silencing system, water Pressure(weak suction). When the machine exports the air, the air in the tube becomes thin and negative pressure is formed. So the outside air will enter the tube by the pressure difference.The principle of weak suction is same to work.
-

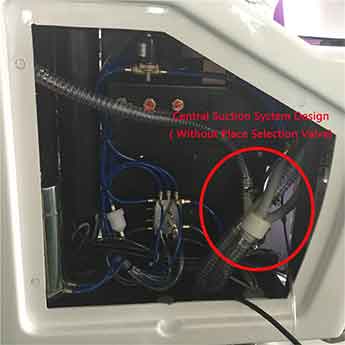

Central Suction System Design（Without Place Selection Valve)
The system without place selection valve,negative pressure will enter the machine directly. When central suction system is touched by the working dental chairs , the pressure will exist in other dental chairs without working,so this design will increases the workload of the central suction system.
-
Central Suction System Design (include Place Selection Valve)
The system with a place selection valve is like a negative pressure switch. When the switch is turned on, the negative pressure will enter the machine. When the switch is closed, the negative pressure will not enter,so this design will reduce the workload of the central suction system.Thus, the work efficiency is improved.
Clear Intraoral Images(optional)
Optional: integration of an intra-oral camera adds a new dimension to patient communication.
Dentist Chair
-
Dentist Stool
PU Or Microfiber Leather for Choose
1)Seat 360 Rotation
2)Seat Height Adjustment:About 510mm To 630mm
3)Backrest Height Adjustment
4)Backrest Backward Adjustment
-
Standard Assistant’s Stool (Option)
PU Or Microfiber Leather for Choose
1)Seat 360 Rotation
2)Seat Height Adjustment:About 460mm To 580mm
3)Backrest fixed
-
Luxury Assistant’s Stool (Option)
PU Or Microfiber Leather for Choose
1)Seat 360 Rotation
2)Seat Height Adjustment:About 520mm To 660mm
3)Armrest 360 Rotation
4)Armrest Height Adjustment
Ergonomics
Seamless Upholstery
Seamless PU upholstery, easy for every day’s clean.

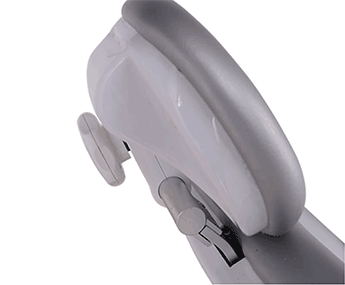

Easy Adjustable Headrest
Comfortable Patient Positioning
Quick adjustment: Only 9 seconds for backrest to move from the lowest position to the highest position.
Synchronized movement of seat and backrest, which keeps the patient from having to readjust when the chair is lowered or raised.
Other Wonderful Design
-
Air Vacuum Muffling System
If you choose your dental treatment center to connect with a oil free air compressor, then a silencer will be installed in the suction part, supply you with a more quiet working environment.
-
Lower Minimum Height
16″ lower minimum height make it easier for children and disableds to enter or exit the patient chair and enables positioning flexibility for practitioners of any stature.
-
Swiveled Armrest
Right armrest can be swiveled aside.
-
Ceramic Swivel Cuspidor
Hygiene
-
Bottle Water System
You can switch to use the bottle water any time.
Detachable Hygiene-critical Compoments
-
- Detachable suction filter
-
- The smooth surfaces are easy to clean on a daily basis.
Safety
-
Interlock System
When one of the instruments is working, the position of the patient chair will be locked.
-
Safety Key
One key, stop everything: air, water and electricity supply, useful for any emergency and every day when you are off work, just push one key, everything closes.
-
Safety Lock Device
All chair movements can be stopped automatically by the safety lock device when obstruction is detected. If the safety device has been activated, just remove the obstruction causing the safety device to activate from this area.(Only R1-Cart Cart Version and R1+ Chair-Side Version are available)
Quality
Top Brand Component
All the main components using inside Mr.Right dental chair are from world’s famous brand name, which insure Mr.Right dental chair super high quality, reliable for years.
-
Taiwan low noise motor, gurantee for 5 years.
-
American Dupont membrane valve
-
Germany Bayer silicone handpiece tubing.
-
Hydrolysis resistance and ageing resistance PU pipes.
Strong and Stable Chair Frame
All frame compoinents get through special rust proofed treatment for long time usage，all the moving parts are connected by oil seal bearings for silence and stale chair movement. Weight capacity up to 441 Ibs (200 kg).
Chair Upholstery Colour
PU Colour Sheet
Microfiber Leather Colour Sheet
Upgrade Microfiber Leather Colour Sheet
Be the first to review “Mr.Right R1 DENTAL CHAIR WITH OPERATING UNIT, ALL YOUR NEED IN ONE PACKAGE, BUILT FOR START.”
High&Low Speed handpiece Kit (TR300)
Dental Handpiece Set Medical Handpeice Kit-Two PCS High Speed Handpiece and One PC Low Speed Handpiece
Fiber Optic High Speed Handpiece With Quick Coupling (SUN-LC4-KP9000)
Fiber Optic High Speed Handpiece With Quick Coupling, Compatible With KAVO 4/6 Hole Fiber Optic Quick Coupling
Build-in LED Curling light (LED.Q)
Woodpecker Built-in Dental Curing Light LED.Q
Build-in Sclaer(UDS-N2 LED)
UDS-N2(LED) LED Woodpecker Ultrasonic Piezoelectric Cavitron Built-in Scaler with Detachable handpiece
Build-in Sclaer (UDS-N2)
UDS-N2 Woodpecker Ultrasonic Piezoelectric Cavitron Built-in Scaler with Detachable handpiece
Suction Machine (TR-YP606A1)
Dental Suction Machine Vacuum System Support 1 Or 2 Or 3 PCS Dental Chair
Air compressor (TR-1EW-32)
Noiseless Oil Free Dental Air Compressor Support 1 PCS Dental Chair 32L，545W
Build-in Micromotor(MD-6)
MODERN® Brushless Electric LED Motor Drive Control, ISO E Type Connection, Inner Water Spray,Speed Range From 100-200,000RPM
Endoscope System (MD-1500A)
Build In Webcam 15 Inch Wired MD1500A Dental Intraoral Camera System LCD Monitor With holder,8GB U disk
STANDARD CONFIGURATION
● Doctor operation panel
● 135°rotatable inclined type big rack● 3 pieces 4 holes handpiece tubing● Pressure Meter● 3 ways syringe● Built-in DC 24V X-Ray film viewer● Air-controlled balance arm● Water botlle supply System
● 180° Rotatable Ceramic spittoon● High-capacity automatic constant temperature heating system● Strong air suction system● Strong water suction system● Air vacuum muffling system● Saliva ejector filter device● Low noise electric-controlled dental unit
● 3 in 1 switch for water, Air, Electricity● Interlock system● Emergency Position● Clear up chair Position after Surgery● LED Operating Light
● Dentist Stool
● Assistant Tray
● Assistant Operation Panel● 3 ways syringe● Detachable weak suction connector● Detachable strong suction connectorSPECIFICATIONS
Power Voltage: AC220V-230V,50HZ/110VWater Pressure: 0.20-0.40Mpa/2.0-4.0barAir Pressure: 0.55-0.80Mpa/5.5-8.0barOutput: ≥55L/min(water vacuum),≥120L/min(air vacuum)| Product Category | Service Life (years) |
| All Mr.right Dental Chairs, Operator and Assistant Stools, Dental Lights, Delivery Systems, Support Systems, Monitor Mounts, Dental Furniture, and related components except components listed separately below | 8 |
| Heated Syringes | 3 |
| Control Modules | 2 |
Warranty
Scope
Mr.right warrants all goods listed below against defects in material or workmanship under normal intended use when purchased from Mr.right or an authorized Mr.right dealer. Mr.right’s sole obligation under the warranty is to provide parts for the repair, or replacement of any defective component with one that is equivalent to the original in performance. This warranty is in lieu of all other warranties or obligations express or implied. Mr.right expressly disclaims all implied warranties of merchant ability or fitness for a particular purpose. In no event will Mr.right be liable for indirect, special, incidental, exemplary, or consequential damages of any kind.The repair or replacement of components is contingent upon Mr.right’s styles and color options available at the time of the warranty claim. If a warranty claim is filed after a product or color has been discontinued, Mr.right reserves the right to honor the warranty in one of the following ways:- Replace the affected component with a new component in the same style and/or color.
- Replace the affected component, and other product components in the operatorwith a product style and/or color similar to the originally purchased style and/or color.
Period
The warranty period, measured from the date of delivery, shall be as follows:| Goods | Warranty |
| Electric Dental Chair Motor(tilt and lift) | 5 years |
| Dental Chair Frame | 5 years |
| Operator and Assistant Stools, Dental Lights, Delivery Systems, Monitor Mounts, Dental Furniture, and related components | 2 years |
Exclusions
The warranty does not cover:- Damage resulting from improper installation or maintenance, accident, misuse, abuse, neglect, alterations, freight damage, or natural disaster.
- Damage resulting from the use of chemicals and process forcleaning, disinfecting, or sterilization.
- Normal service items such as (but not limited to): light shields, light bulbs, filters, O-rings, handpiece tubing, and water cartridges. Also, normal wear and tear is not covered.
- Consumable products held beyond the expiration date shown on thepackaging.
- All other products, not manufactured by Mr.right, including OEM, follow the original manufacturer’s warranty, and are not covered by Mr.right’s warranty. Examples include, but not limited to: sterilizers, maintenance equipment, cameras, curing lights, ultrasonic, control modules, electric motors, attachments, handpieces, and turbines. Please contact Mr.right Customer Service for specific warranty information.
